HLR

Horizontal lifting

144"
201"

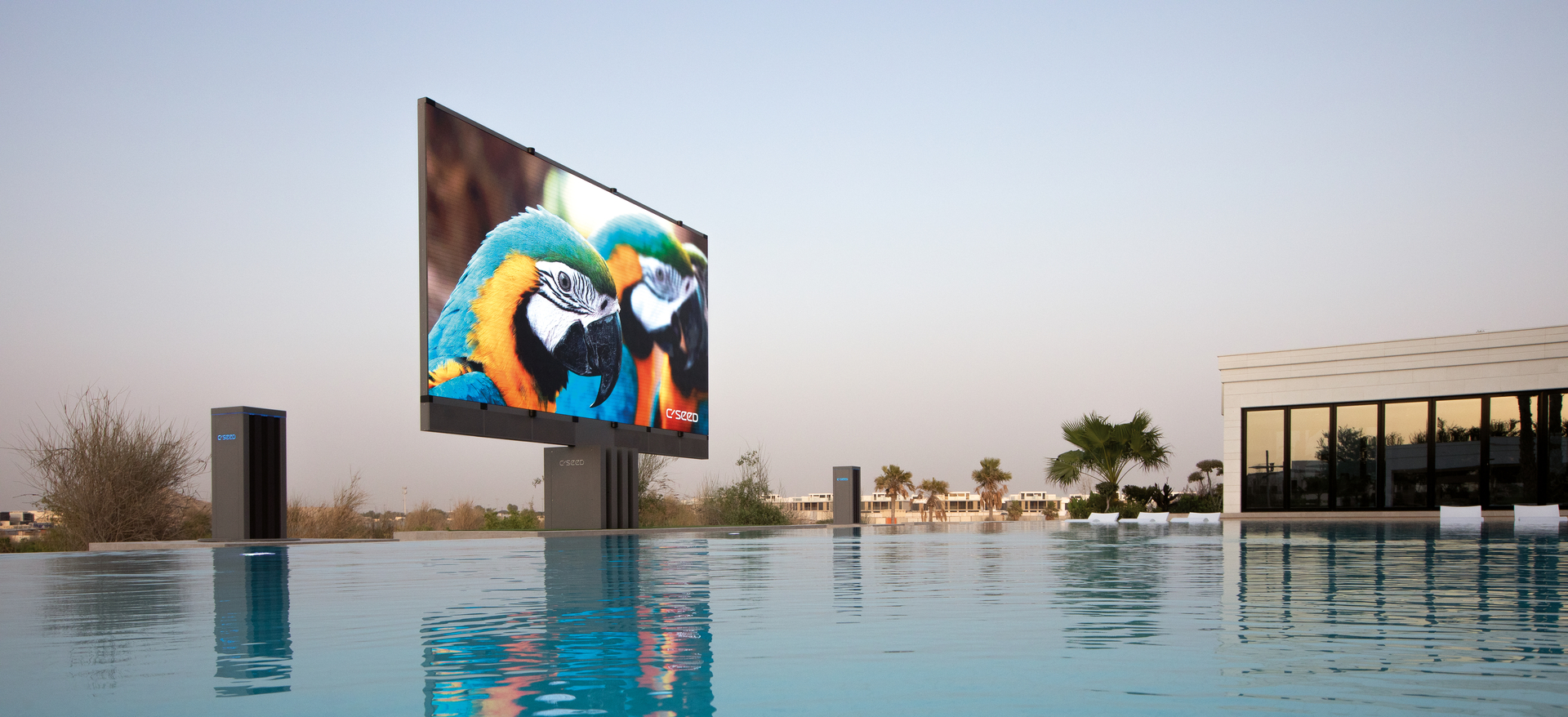

C SEED HLR TV 144" and 201" redefine what it means to bring cinema outdoors. Designed for those who seek maximum efficiency and elegance in their luxurious spaces, these systems transform rooftops, terraces, and poolside areas into immersive cinematic environments. Whether enjoying a quiet evening under the stars or hosting a glamorous outdoor gathering, HLR TVs deliver a seamless fusion of light, sound, and motion, tailored to the rhythm of your space.

Extraordinary picture, even in daylight

C SEED HLR TVs bring revolutionary visual performance to the open air. With Ultra High Definition MicroLED technology, exceptional brightness of 4,000 nits, refresh rate of 3,840 Hz, and 16-bit color depth, every image is crystal clear, even under the brightest sun. Over eight million self-illuminating pixels create perfect blacks, vivid colors, and consistent picture quality from every angle. The result is a cinematic canvas where daylight never compromises artistry.

Sleek design, architectural presence

Every detail of the HLR series is conceived with spatial intelligence. The TV is discreetly housed within a compact compartment box measuring only 85 cm (33.4 inches), powered by a state-of-the-art horizontal lifting mechanism. When activated, the TV unfolds gracefully, integrating into its surroundings as if it had always belonged there. This is technology that respects space, architecture, and the flow of life outdoors.

Effortless motion, seamless integration

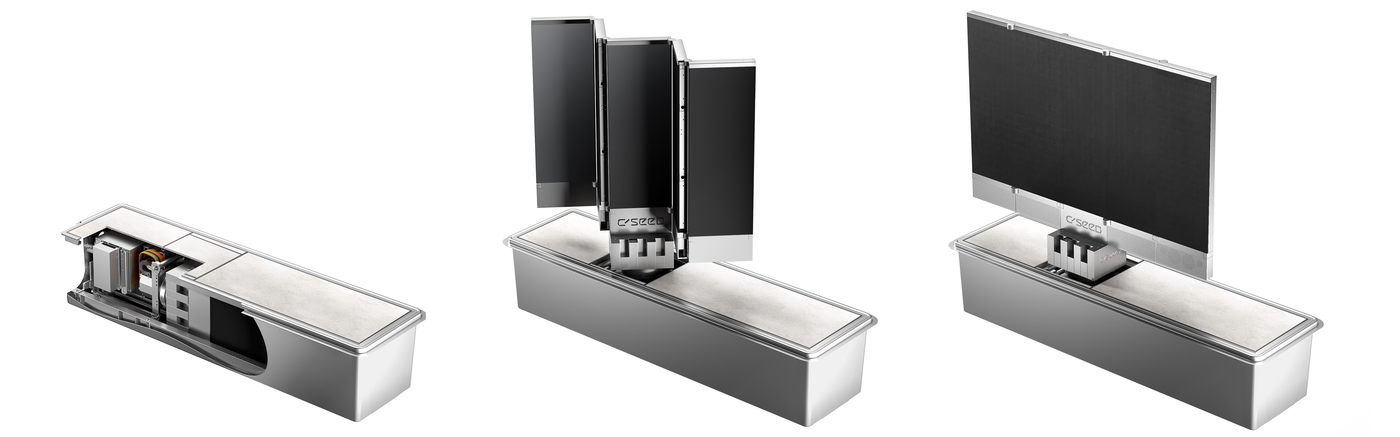

Activation is intuitive: a single press of the remote initiates a choreographed sequence. In just 30 seconds, the HLR TV rises from its compartment, followed by the silent unfolding of five or seven massive MicroLED panels over 45 seconds, forming a seamless outdoor screen. The display rotates 90° left and right, or 180° in a single direction, offering flexibility while preserving architectural integrity. When not in use, the TV retreats gracefully, freeing the space for multifunctional living.

Immersive sound and smart control

The HLR series also delivers an extraordinary acoustic experience. A high-performance integrated sound bar ensures crystal-clear audio, perfectly matched to the visual spectacle. With the new C SEED media controller, full 4K processing and seamless integration with home automation systems such as Crestron make controlling light, sound, and image effortless.

Explore the HLR 201 & 144 TV

Book a meeting in one of our international showrooms, or schedule a virtual presentation.

TECHNICAL DATA
& drawings

Tv System
201
144
Brightness
nits
4,000
Pixel Pitch
1.90
1.60
Number of MicroLEDs
2,963,520
2,200,000
Processing depth
bit
16 per color
Color spectrum
colors
64 billion
Refresh rate
Hz
3,840
Lifespan
h
100,000
Contrast ratio
7,000:1
Colour temperature
k
6,500 - 10,000
Viewing angle - horizontal
degrees
160
Viewing angle - vertical
degrees
160
LED fixings
back - service
Operating temperature range
°C
-20 to +45
Physical dimensions
LED TV size (diagonal)
inch/mm
201 / 5105
144 / 3658
LED TV size (width)
inch/mm
176.4 / 4480
126 / 3200
LED TV size (height)
inch/mm
94.5 / 2400
69 / 1760
LED TV area
sq.ft./m²
116,3 / 10,8
60,3 / 5,6
TV Rotation
90⁰ left and right or 180⁰ one direction
LED TV system weight
kg
2800
1650
Physical dimensions stowed position
Concrete basin size (Length)
inch/mm
184/ 4.675
160/ 4.060
Concrete basin size (Width)
inch/mm
48 / 1.210
42 / 1.060
Concrete basin size (Height)
inch/mm
34 / 844
Input / Output
Video input
1 x HDMI, HDCP 2.2 support / *Does not include inbuilt or separate TV tuner.
Serial in/output
2 x USB, 1 x RS232
Audio output
pre-amp, 11.2, independent sub
Network connection
1 x RJ45
OPERATION
Power supply LED screen
Standard
3 x 400V+N+PE/32A/50-60Hz
3 x 400V+N+PE/16A/50-60Hz
High-Leg-Delta
3 x 240V+PE/60A/50-60Hz
3 x 240V+PE/30A/50-60Hz
Single-Phase / Split-Phase
240V/120V+PE/110A/50-60Hz
240V/120V+PE/60A/50-60Hz
Input power LED max | typical
W/m²
880 I 230
Power consumption max | typical
kW
19 I 5,7
14 I 3,8
Equipment
Remote control
Yes
Control server
Yes
A/V receiver
Yes
Video processor
Yes
Amplifier
Yes
Electric elevating lift
Yes
Main cabinet
Yes
Automatic TV Cover
Yes
options
Broadband speaker peak out
watt
4 x 250
2 x 250
Broadband speaker frequency range
40 Hz - 22 kHz
