M1

THE UNFOLDING TV

110"
137"
165"

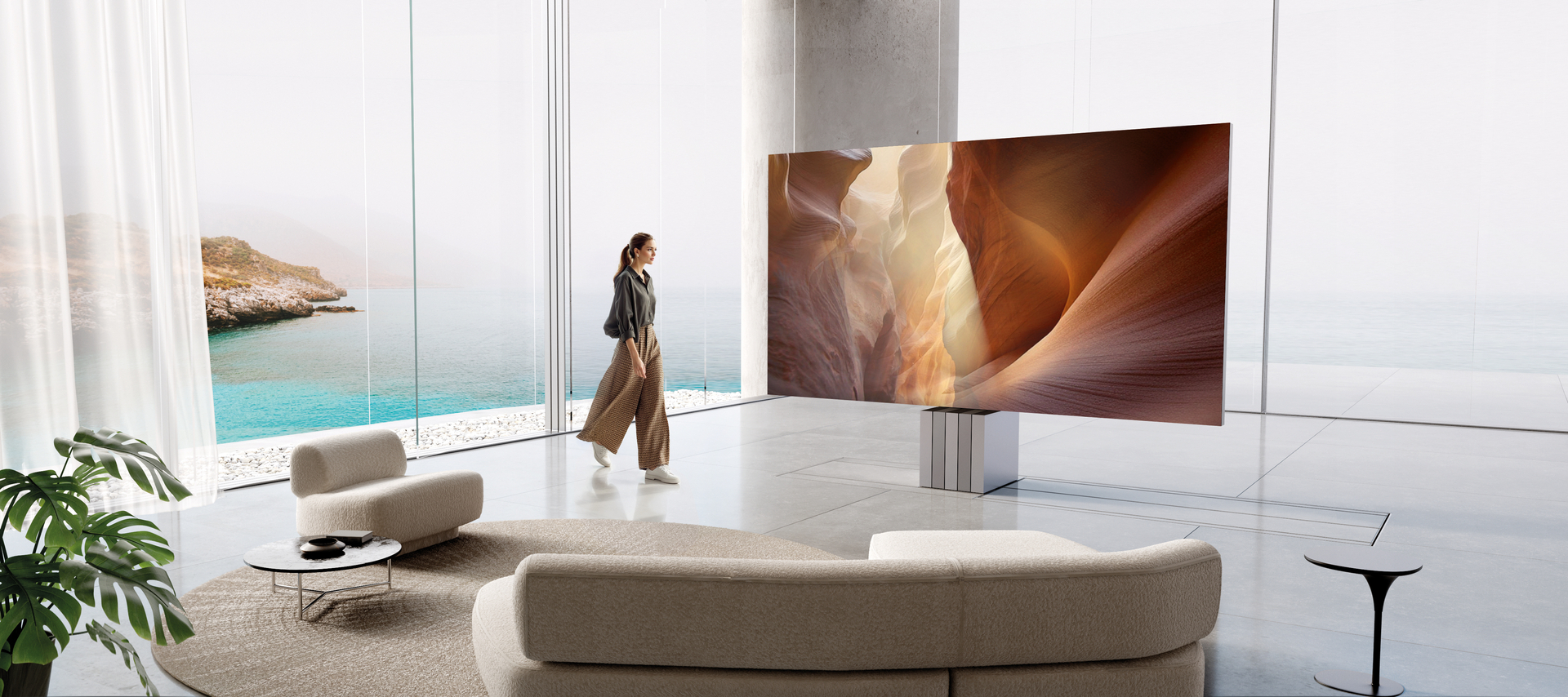

A luxury 4K MicroLED TV that rises from the floor and unfolds in seconds. The C SEED M1 foldable screen is crafted for architectural freedom, interior design integration, and a seamless home cinema experience.



Unfold Motion & Design

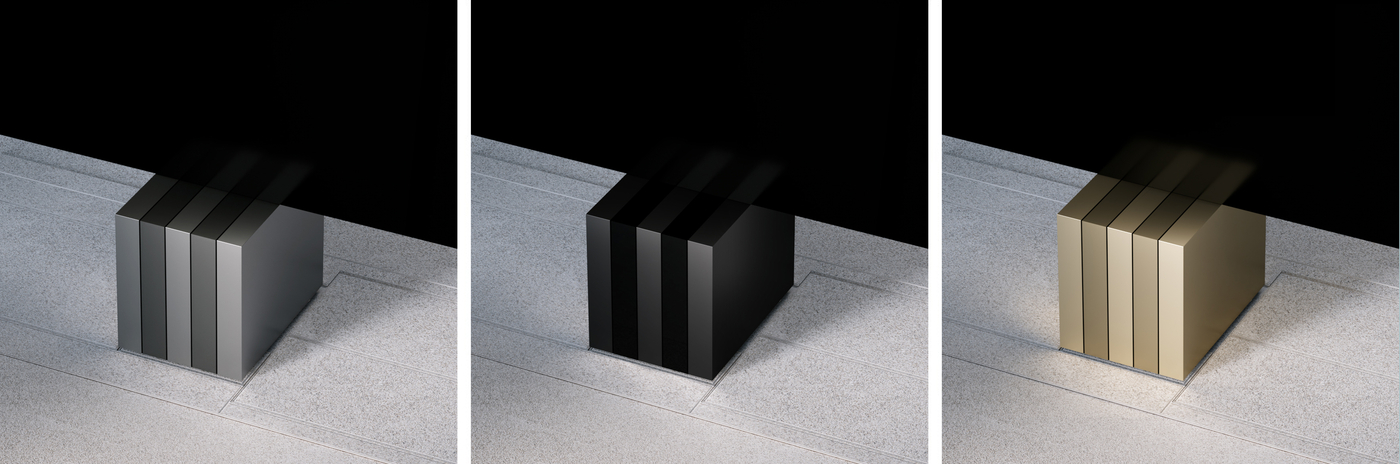

Created for visionaries who value both form and function, the C SEED M1 is a sculptural floor element that transforms into a breathtaking 4K MicroLED display. Available in 165", 137", and 110" and finished in Silver, Gold, Black, or Titanium, the M1 integrates seamlessly into any luxury interior or high-end commercial space. Every detail, from the precision-machined aluminum frame to its kinetic unfolding system, is designed to elevate your environment, inviting architects and designers to envision it as part of their most ambitious projects.

Kinetics That Captivate

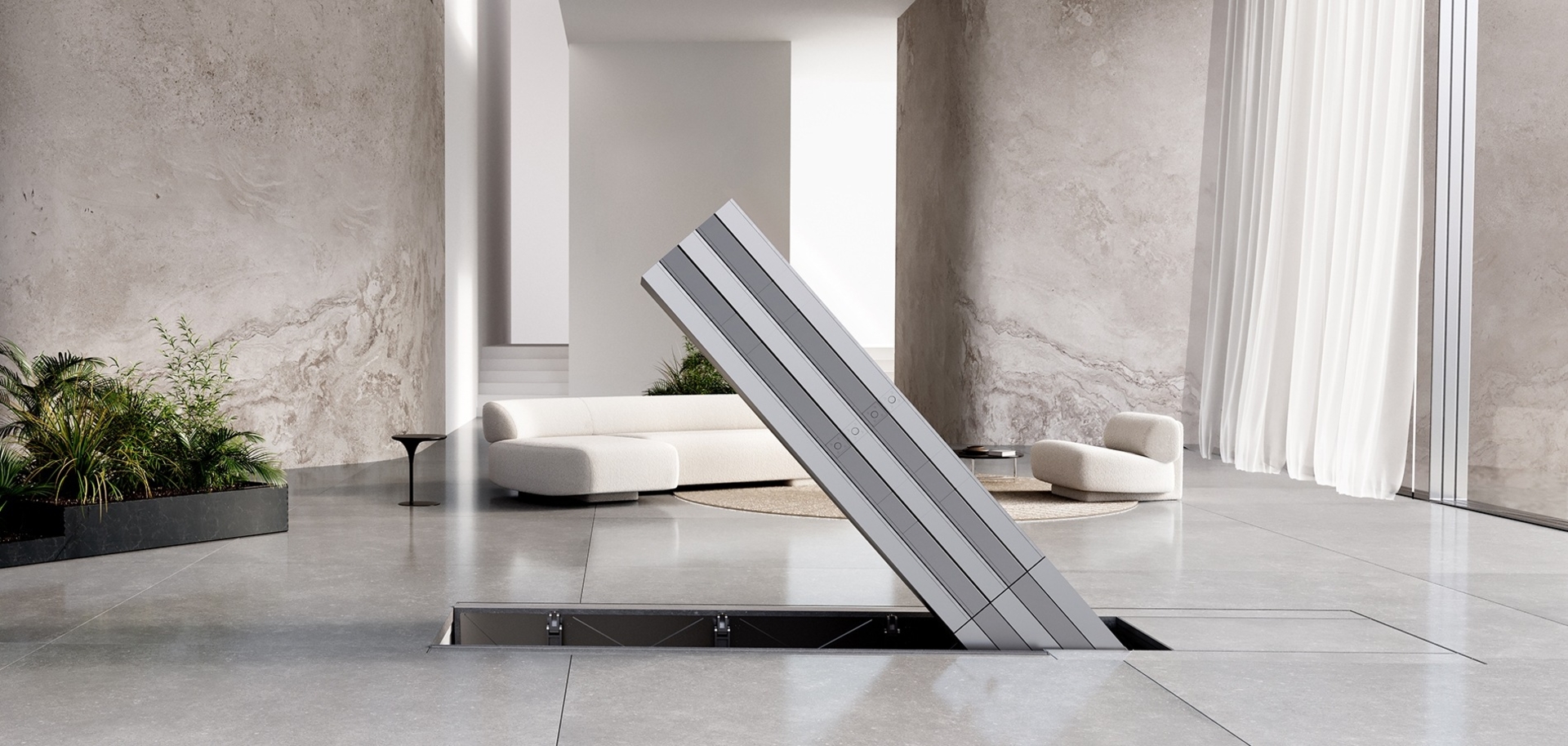

The M1 TV is engineered for motion, not just display. At the push of a button, the screen rises smoothly from the floor and unfolds gracefully, guided by a frame of aviation-grade aluminum and a base of four plates that anchor its movement. The integrated 2.1 audio system delivers immersive sound without extra equipment, and Adaptive Gap Calibration ensures perfectly seamless panel alignment. When closed, it is a quiet, sculptural presence; when open, it becomes an experience of cinematic elegance and kinetic poetry.

Smart Home Integration

Designed for effortless integration, the C SEED M1 connects seamlessly with leading home automation systems and high-end audio setups. Its dedicated 4K media server and 2.4 GHz radio remote control offer intuitive, long-range operation, up to 25 meters, ensuring total control and convenience in even the most spacious interiors.

Explore the M1

Book a meeting in one of our international showrooms, or schedule a virtual presentation.

TECHNICAL DATA
& drawings

TV Physical Dimensions
165
137
110
LED TV size (diagonal)
inch/mm
165 / 4196
137 / 3497
110 / 2797
LED TV size (width)
inch/mm
144 / 3657
120 / 3048
96 / 2438
LED TV size (height)
inch/mm
81 / 2057.4
67.5 / 1714.5
54 / 1372
Standard LED screen (depth)
inch/mm
3.9 / 99
3.5 / 99
3 / 75
LED TV area
sq.ft./m²
81 / 7.53
56.19 / 5.22
36 / 3.34
Total system weight
kg
1,100
790
590
TV System
Resolution
4K (UHD)
Brightness
nits
1,000
1,000
800
Pixel pitch
mm
0.9
0.7
0.4
Processing depth
bit
16 per color
Color spectrum
colors
64 billion
Refresh rate
Hz
3,840
Lifespan LED
h
100,000
Contrast ratio
30,000:1
Color temperature
K
3,000 - 10,000
Viewing angle- horizontal | vertical
degrees
170 | 170
Operating temperature range
°C: 0 to + 40 | °F: +32 to +104
Broadband speaker peak out
W
60 Hz - 22 kHz
Broadband speaker frequency range
Hz
40Hz - 22kHz
Subwoofer peak out
W
1 x 700
Subwoofer frequency range
Hz
40 - 200 Hz
Input / Output
Video Input
5 x HDMI, 1 x HDCP, 2.2 support / *Does not include inbuilt or separate TV tuner.
Serial in/output
2 x USB
Audio output
pre-amp, 9.2, independent sub
Network connection
1 x RJ45
Equipment
Remote Control, 9.2 AV Receiver
4K LED HDR10+ Controller
Automatic TV cover with Flush Mount Floor Option
TV-Rotation 180° left/right, Sound System 2.1, ACG
Operation
Power supply LED screen
Standard
3 x 400V+N+PE/16A/50-60Hz
High-Leg-Delta
3 x 240V+PE/30A/50-60Hz
Single-Phase / Split-Phase
240V/120V+PE/60A/50-60Hz
Input power max | typical
W/m²
500 | 160
Power consumption max | typical
3.8 | 1.2
2.6 I 0.9
1.5 I 0.5
